Clean Room Gantry Crane refers to cranes used for lifting heavy loads in larger cleanrooms. They can be fixed or mobile, and stainless steel is the most common choice, depending on the application's requirements.
The implementation of cleanroom gantry cranes in these sensitive industries helps maintain the strict cleanliness standards necessary for product quality, safety, and compliance with regulations.
Given the advancement of the technical industry, there are numerous specialized working environments, such as aviation, aseptic pharmaceutical workshops, and food manufacturing plants, that require strict cleanroom standards. Consequently, there is a need for cleanroom cranes to provide hoisting and transportation solutions.
Following are special features finds on KFCS cleanroom cranes.
• Debris shield positioned beneath the lower block helps prevent wire rope debris from reaching a spacecraft's components
• Runaway conductor bars that are coated in an extruded plastic to help prevent debris from escaping into the clean room environment
• Walkways equipped with continuing kick plates for capturing debris and dirt

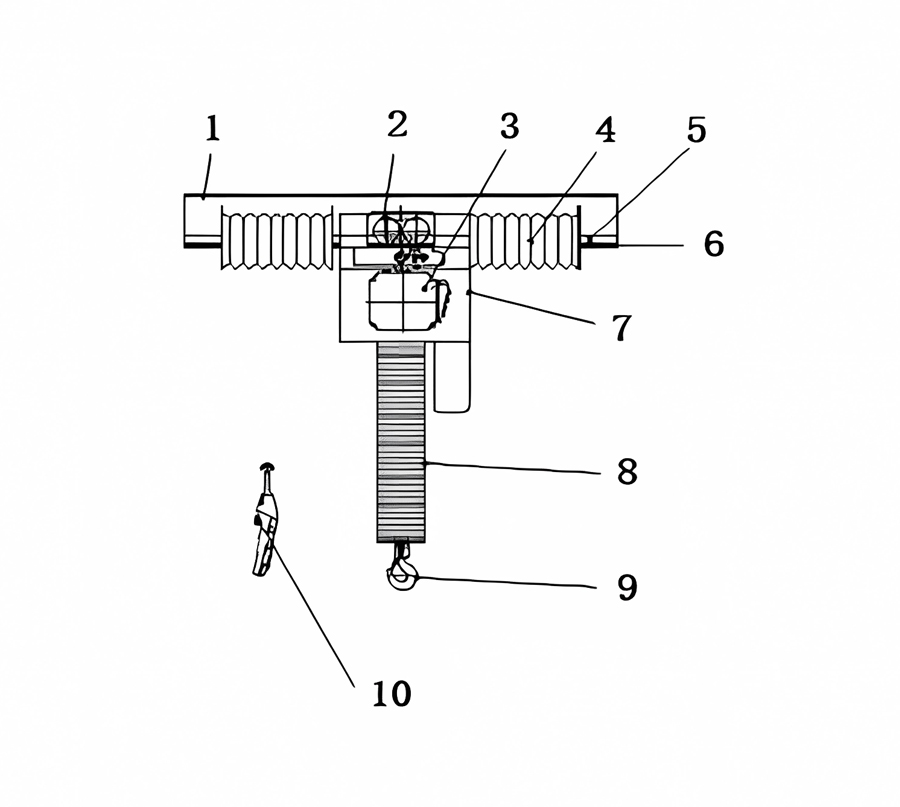

Components of Clean Room Gantry Crane Hoist
1. Hoist traveling track: The horizontal track along which the crane moves side-to-side.
2. Hoist trolley: The wheeled trolley that travels along the lateral track to provide horizontal movement.
3. Electric Hoist Carriage: The carriage that houses the electric hoist, allowing vertical lifting and lowering of the load.
4. Left-Right Lateral Accordion Cover: The accordion-style cover that encapsulates the lateral movement components to maintain cleanroom conditions.
5. Cable Drag Chain: The flexible cable/hose carrier that moves with the lateral trolley to supply power and controls.
6. I-Beam Barrier: The protective barrier made of I-shaped steel beams installed at the sides.
7. Fully Enclosed Stainless Steel Dust Cover: The sealed, stainless steel housing that encloses the entire system to prevent particle release.
8. Vertical Telescopic Accordion Cover: The accordion-style cover that extends and retracts vertically to enclose the lifting mechanism, like the electric chain hoists, wire rope hoists, etc.
9. Stainless Steel Hook: The hook assembly made of corrosion-resistant stainless steel.
10. Wireless Remote Control: The handheld controller that allows wireless operation of the crane functions.
Industries that Use Clean Room Gantry Cranes
• Lifting and moving materials, supplies and products for clean room manufacturing
• Aerospace, semiconductor parts, repair, unloading, and material movement
• Warehouses that don't have the space or structure to support overhead bridge cranes
• Rented facilities where the crane cannot be permanent
If a business is looking to invest in clean room gantry crane, it is important to ensure that they work with the right supplier. Get the right price by comparing costs and features of the crane. Contact KFCS today!
